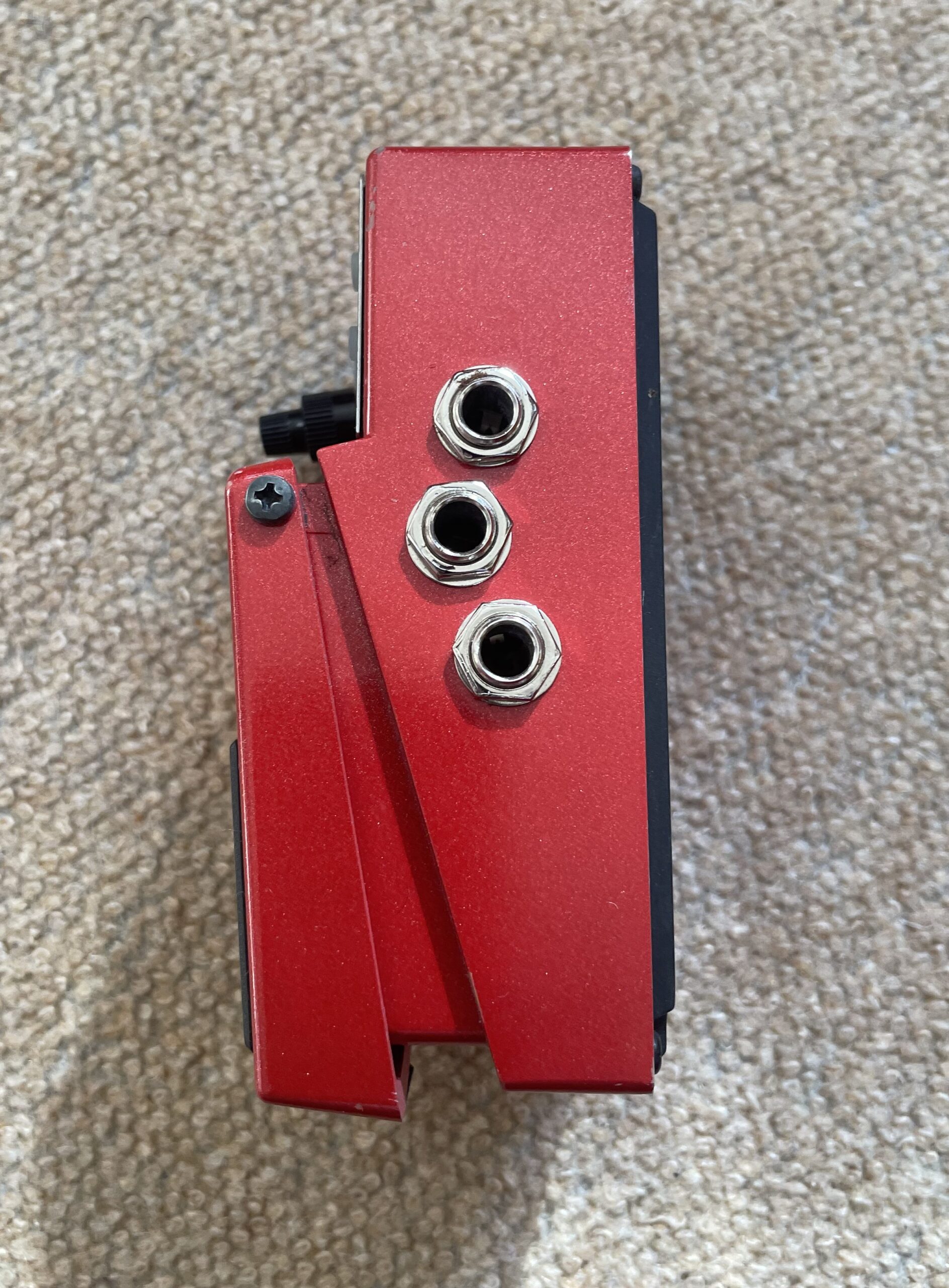

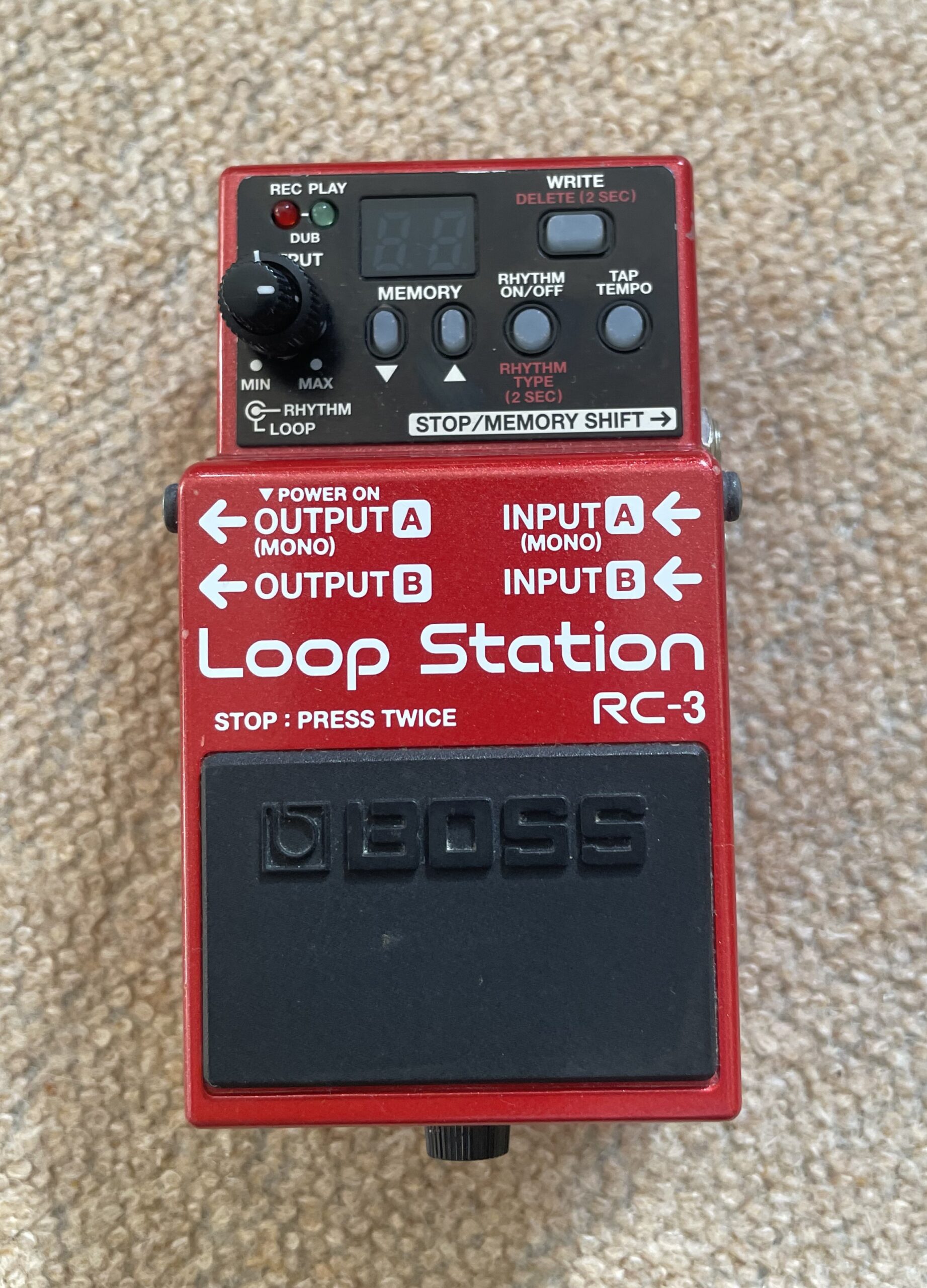

Boss RC-3 Loop Station

In great condition

No box

You can connect the RC-3 to your computer via a standard USB cable, and back up your RC-3 recordings to your computer for safekeeping. You can also load WAV files from your computer directly into the RC-3. The RC-3 accepts 16-bit/44.1kHz WAV files of up to 1.7GB in size.

AUX Input

In addition to recording your guitar or bass performances and turning them into playable loops, you can also record other external stereo audio sources via the RC-3’s AUX IN. Sound from a digital-audio player connected to the AUX input, for example, can easily be recorded and made into a loop.

Features

• Compact and powerful stereo stomp box looper
• Massive internal memory with up to three hours of stereo recording time
• 99 onboard memories for storing loops
• USB 2.0 port allows you to connect to a PC and import/export WAV audio
• Rhythm guide with real drums
• Runs on a single 9-volt battery or optional AC power supply
• Visit BOSS tone central for free loop content and software to manage your LoopStation

Specifications

• Nominal Input Level:
  • INPUT: -20 dBu
  • AUX IN: -10 dBu
• Input Impedance:
  • INPUT: 1 M ohm
  • AUX IN: 22 k ohms
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Recording/Playback:
  • Maximum Recording Time: Approximately 3 hours
  • Maximum Phrase Memory: 99 phrases
  • Number of tracks: 1
  • Data Format: WAV (44.1 kHz, 16-bit linear, stereo)
• Rhythm Type: Hi-Hat, Kick
• USB Interface: Hi-Speed USB mass storage device class
• Controls:
  • Pedal switch
  • LOOP OUTPUT knob
  • RHYTHM OUTPUT knob
  • DOWN button
  • UP button
  • WRITE button
  • RHYTHM ON/OFF button
  • TAP TEMPO button
• Indicators: REC, PLAY (DUB) indicator
• Display: 7 segments, 2 characters (LED)
• Connectors:
  • INPUT A Jack: 1/4″ phone type
  • INPUT B Jack: 1/4″ phone type
  • AUX IN Jack: Stereo miniature phone type
  • OUTPUT A Jack: 1/4″ phone type
  • OUTPUT B Jack: 1/4″ phone type
  • STOP/MEMORY SHIFT Jack: 1/4″ TRS phone type
  • USB Connector
  • DC IN Jack (DC 9 V)
• Power Supply:
  • DC 9 V: Alkaline battery (9 V, 6LR61)
