Palmer POWER PAD PD106 MkII 16 OHM GUITAR AMP ATTENUATOR

£99.00

Palmer POWER PAD PD106 MkII 16 OHM GUITAR AMP ATTENUATOR In great condition No box What Palmer say: The PDI06 is a power attenuator for live applications. The device is connected between the amplifier output and the speaker cabinet. It makes it possible to use the popular power stage distortion…Read More

Have a question about this product? Speak to our expert team today: 07966555586

Out of stock

Palmer POWER PAD PD106 MkII 16 OHM GUITAR AMP
ATTENUATOR

In great
condition

No box

What Palmer say:

The
PDI06 is a power attenuator for live applications. The device is connected
between the amplifier output and the speaker cabinet. It makes it possible to
use the popular power stage distortion of tube amplifiers while reducing the
associated high volume level. This permits practical volume reduction in six
increments from 100% to 18% for stage and practice room situations. An
additional level makes the speaker completely mute; the PDI06 then functions as
a LOAD BOX and absorbs the entire output power of the amplifier.

This
mode of operation is useful, for example, when connecting an amplifier equipped
with a speaker cabinet emulation directly to the mixing desk using an existing
line-out and loud volume levels in the recording booth are undesirable. The unit
has an input for the speaker signal from the amplifier and two outputs for
connecting speaker cabinets.

Specs:

·
Maximum input power: 120 watts

·

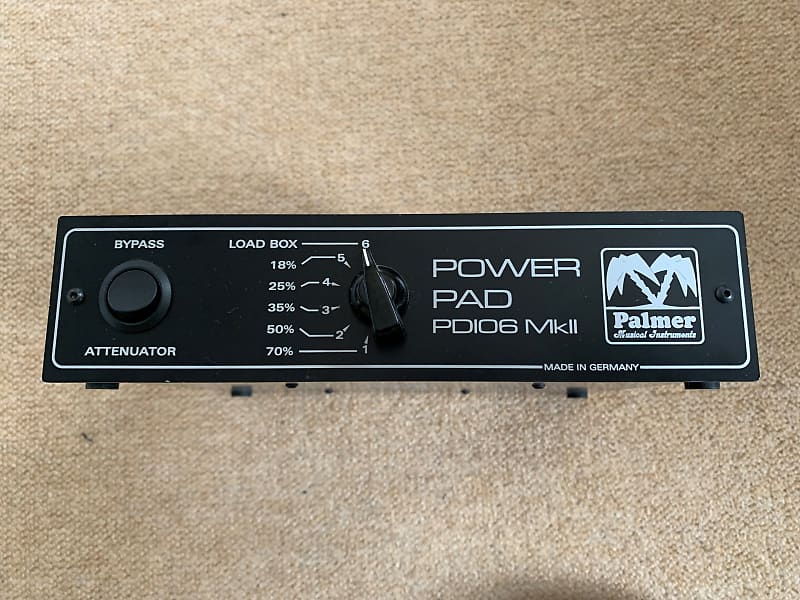

6-position switch, 5 increments (3 dB
each) for volume reduction, equivalent to attenuation of the input power to
70%, 50%, 35%, 25%, 18%.

·
The LOAD BOX position mutes the
connected speaker cabinet.

·
The BYPASS/ATTENUATOR switch lets the
user toggle quickly between full and reduced output.

·
Input from amplifier: 1 x 6.3 mm jack
socket

·
Output for speaker cabinets: 2 x 6.3
mm jack sockets connected in parallel

·
Output impedance: 16 ohms

condition

Excellent

make

Palmer

model

POWER PAD PD106 MkII 16 OHM GUITAR AMP ATTENUATOR
